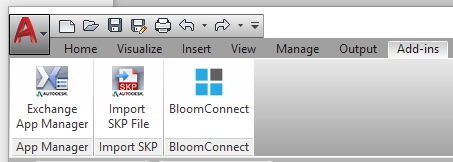

Install Autocad-BloomCE integration plugin for Autocad. Download the installer from here. After installtion, the BloomCE connector plugin will show in the ribbon.

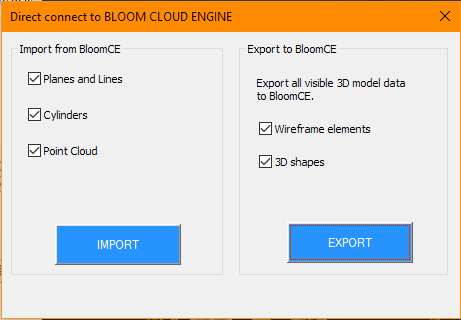

Options

Import and export data from running session of BloomCE desktop. Only the visible data in either applications is exchanged through this interface.


Import

Import visible data from BloomCE

  • Planes and lines options: Imports all 2D lines, points, markers and planes.
  • Cylinders: Imports all visible cylinders
  • Point Cloud: Imports all visible points using RCS format. The RCS files are located in BloomCE project's asset folder.


After import, close the optionbox and use Zoom Extents to view the data in Autocad.

Export

Export visible and non-frozen layers from Autocad.

  • Wireframe elements: All 2D drawings
  • 3D shapes: All 3D drawings


Versions supported

2017-2018, 2019 CAD support is underway
